PG WEB2720Y
General Description
The PG WEB2720Y is an
ultra-low power, high performance Bluetooth audio SoC. The platform
incorporates a powerful CPU subsystem comprising a tri-core Arm Cortex-M55
processor with a tri-core PG WEB proprietary coprocessor (BECO NPU) for advance
signal processing and NN workloads, and an Ethos-U55 NPU (optional). This
combination significantly reduces power consumption while providing substantial
application processing capabilities.
The platform incorporates
a dual-mode Bluetooth 6.1 subsystem for both Bluetooth classic and LE audio, as
well as an audio codec. The highly integrated solution is optimized through the
use of IBRT technology, a PG WEB patented sniffing technique that incorporates
Forward Error Correction (FEC) for enhanced RF performance in TWS systems.

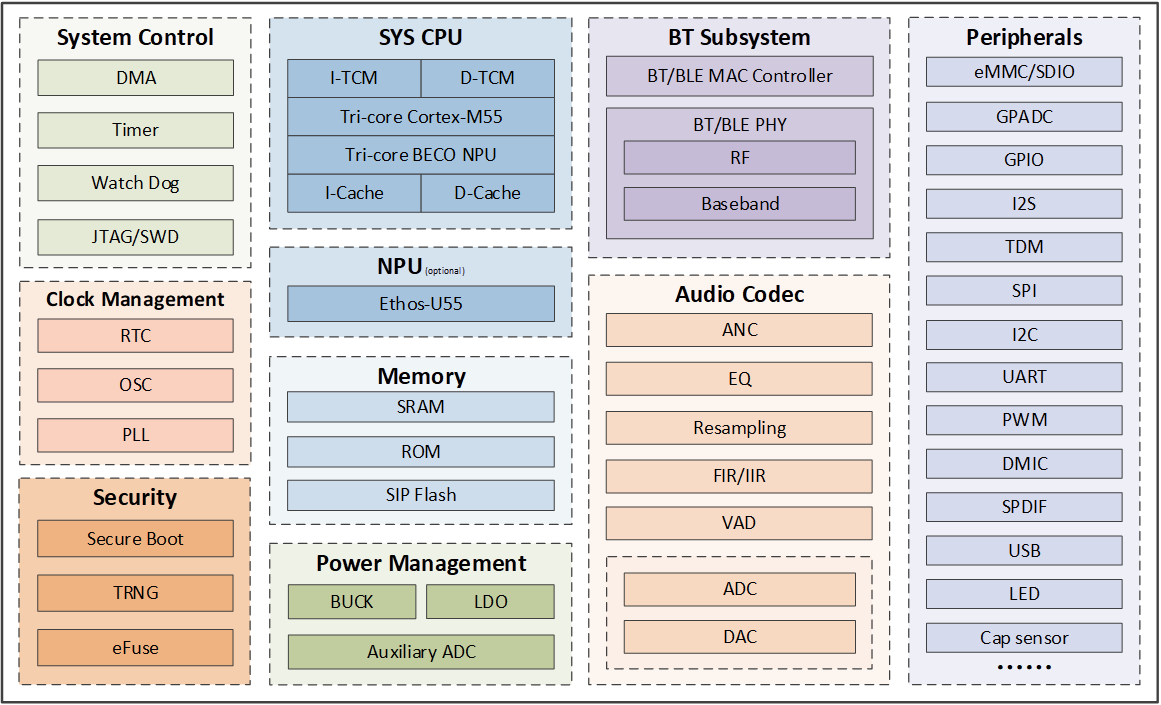

System Block Diagram

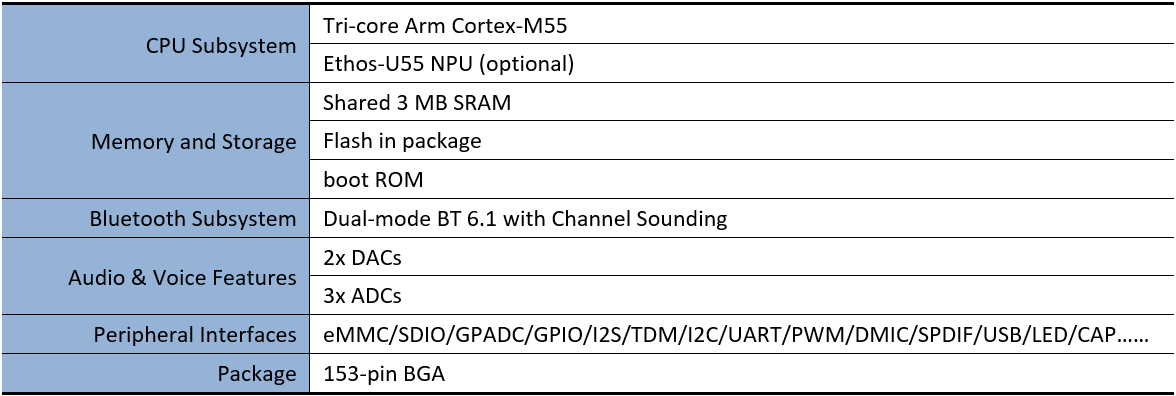

Features/Specifications
* The content in the table is subject to change without notice.
Applications
•Smart Bluetooth TWS earbuds with real-time adaptive ANC
•Other portable audio devices
