PG WEB3002-SP
General Description
The PG WEB3002-SP is a single-chip audio codec designed for USB Type-C headphones / headsets. The platform incorporates a high performance CPU subsystem comprising a dual-core STAR-MC1 with a dual-core BECO NPU, a PG WEB proprietary coprocessor for advance signal processing and NN workloads. This combination significantly reduces power consumption while providing abundant application processing capabilities.
The platform incorporates a codec subsystem and a Power Management Unit (PMU). It is manufactured by using an advanced low power CMOS process and assembled within a 50-pin QFN package. The highly integrated design minimizes external components, reduces BOM costs and offers a cost-effective USB / Type-C audio solution.

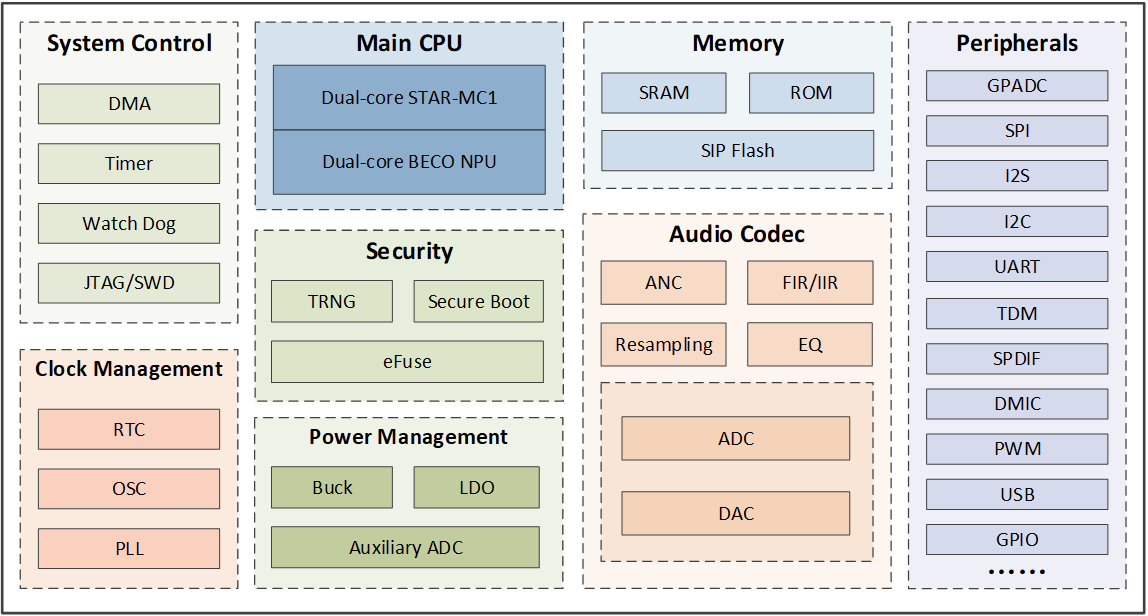

System Block Diagram

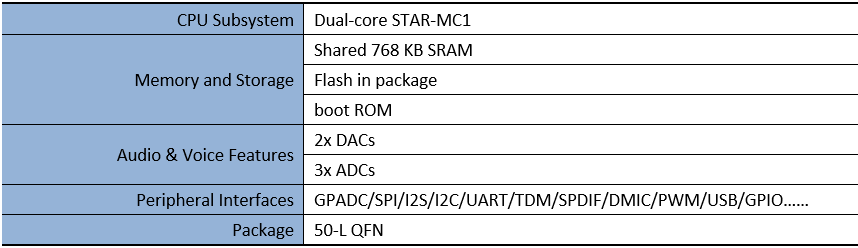

Features/Specifications
* The content in the table is subject to change without notice.
Applications
•USB / Type-C stereo headphones
•Headphones with ANC FF or FB
•Headphones compliant with TIMS MVP 5.0
